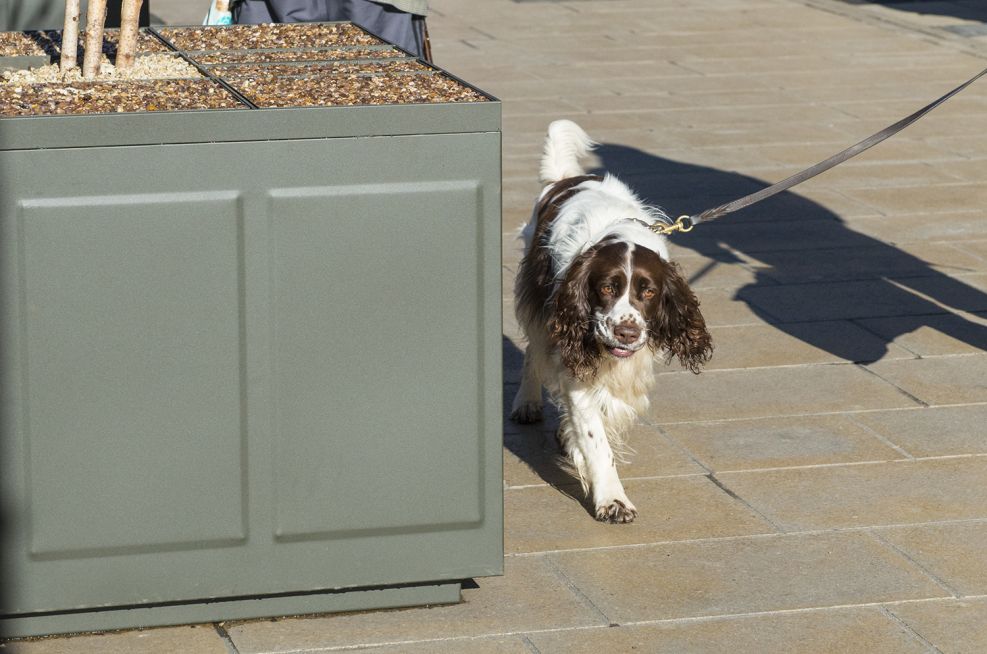

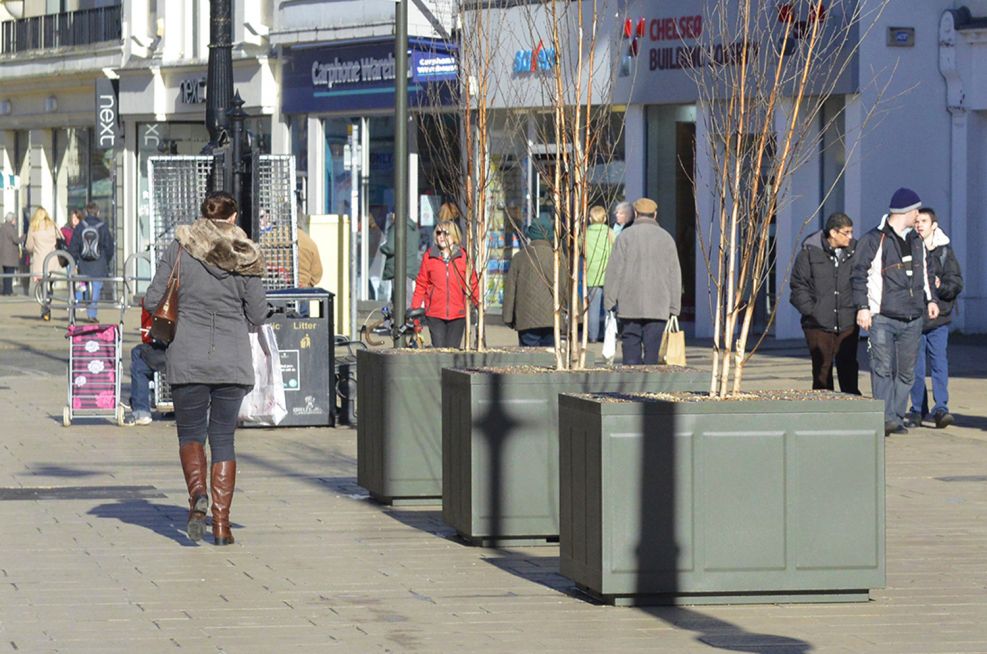

Cheltenham High Street Tree Planters Made From Steel

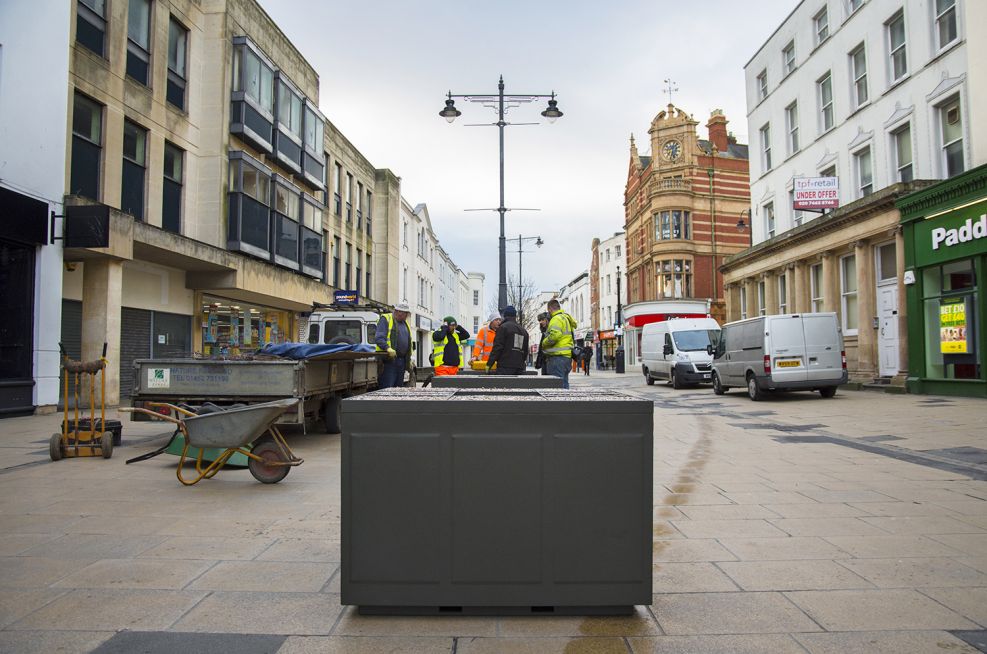

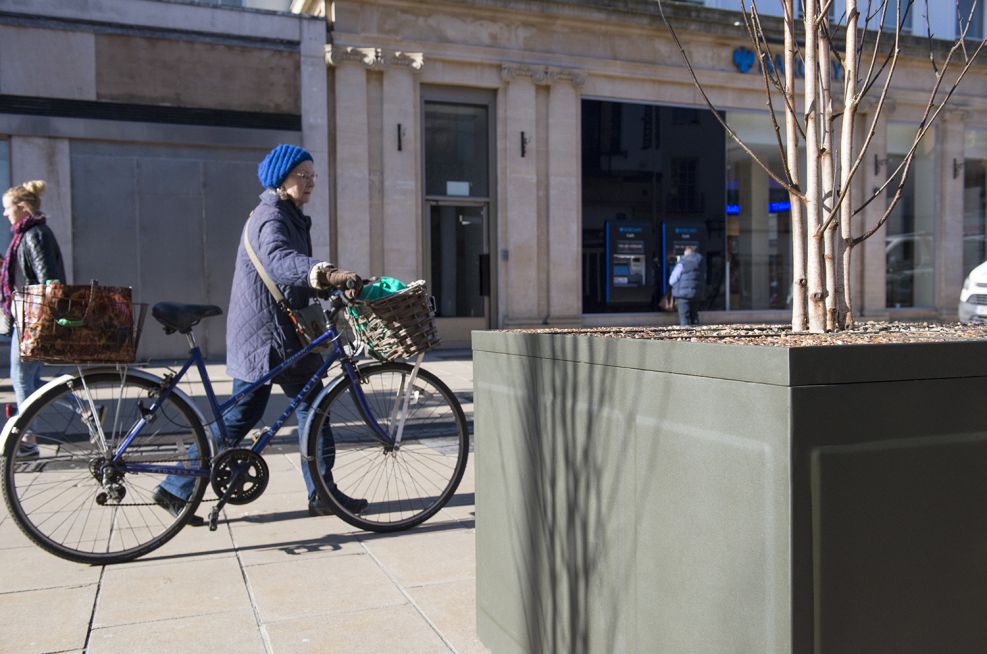

Powder Coated Steel Tree Planters Coated to RAL 600 Grey Olive

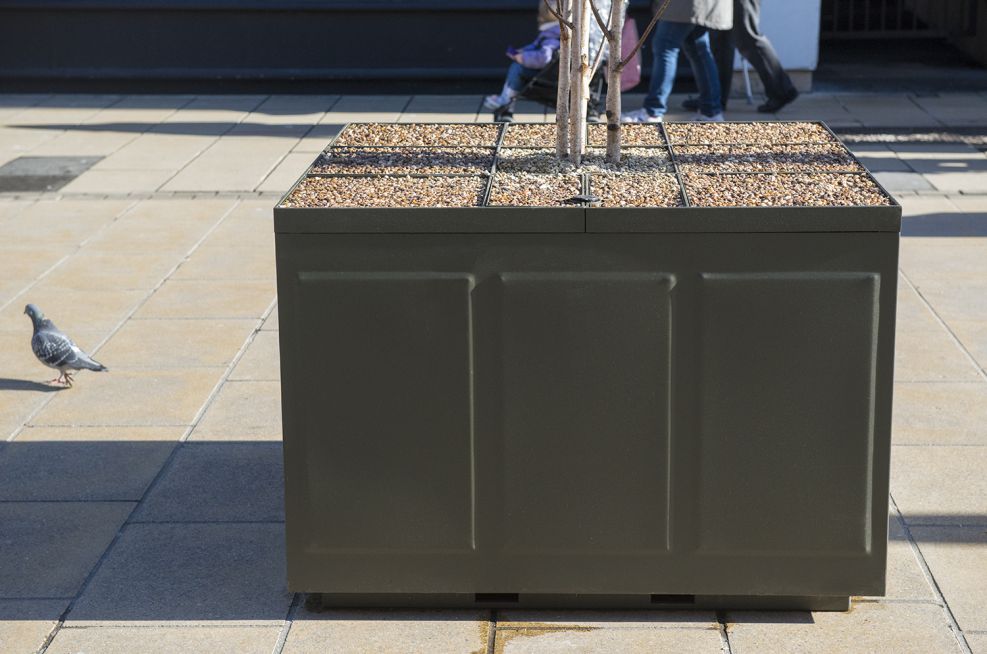

Pressed 4 Panel Planters In Cheltenham High Street

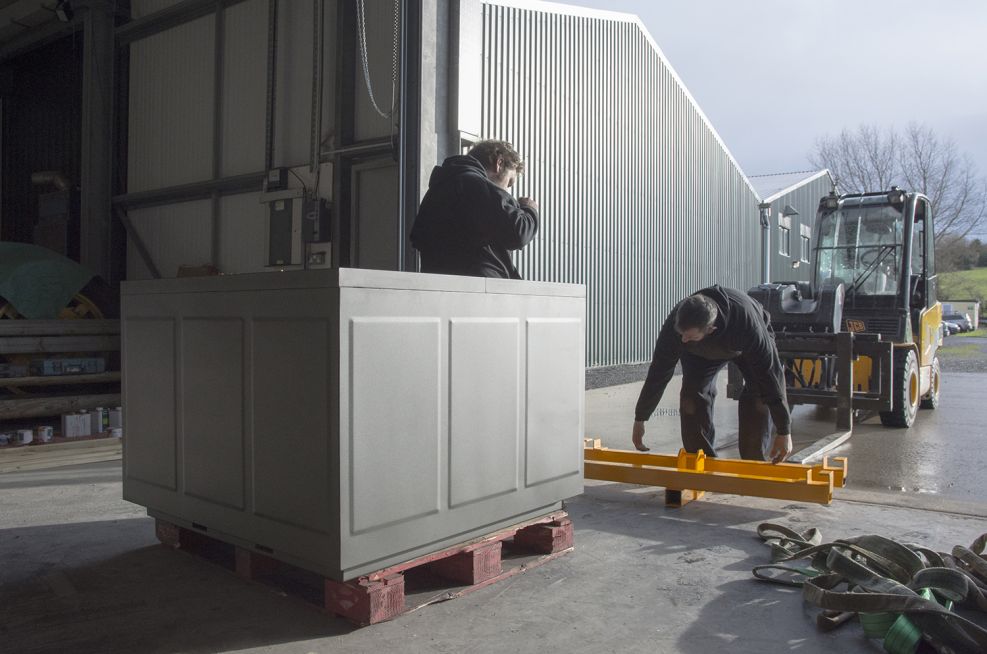

Completed Planter Commissioned By Cheltenham Borough Council

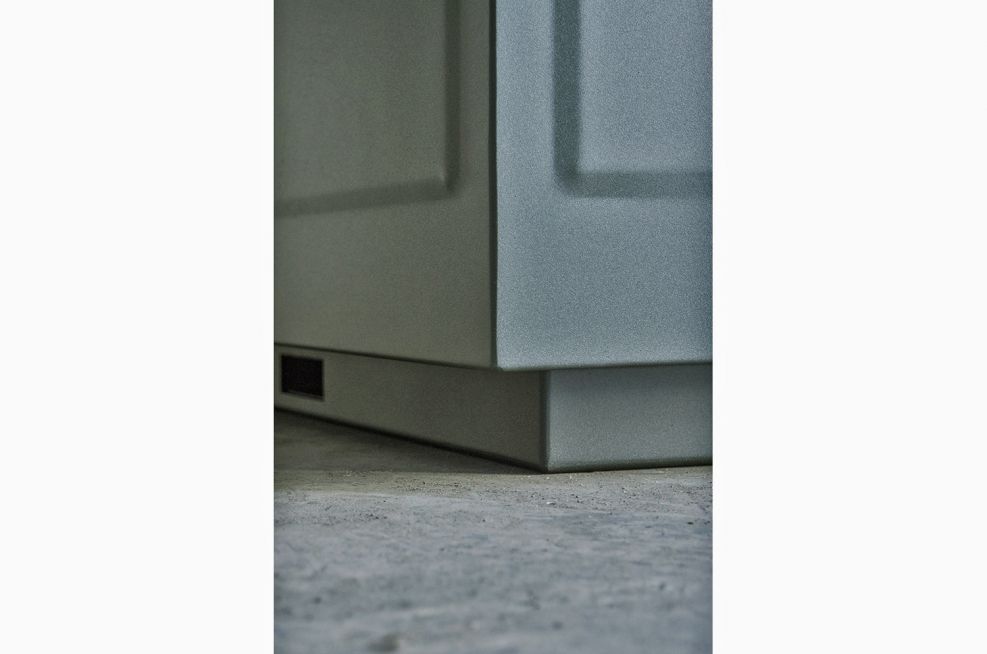

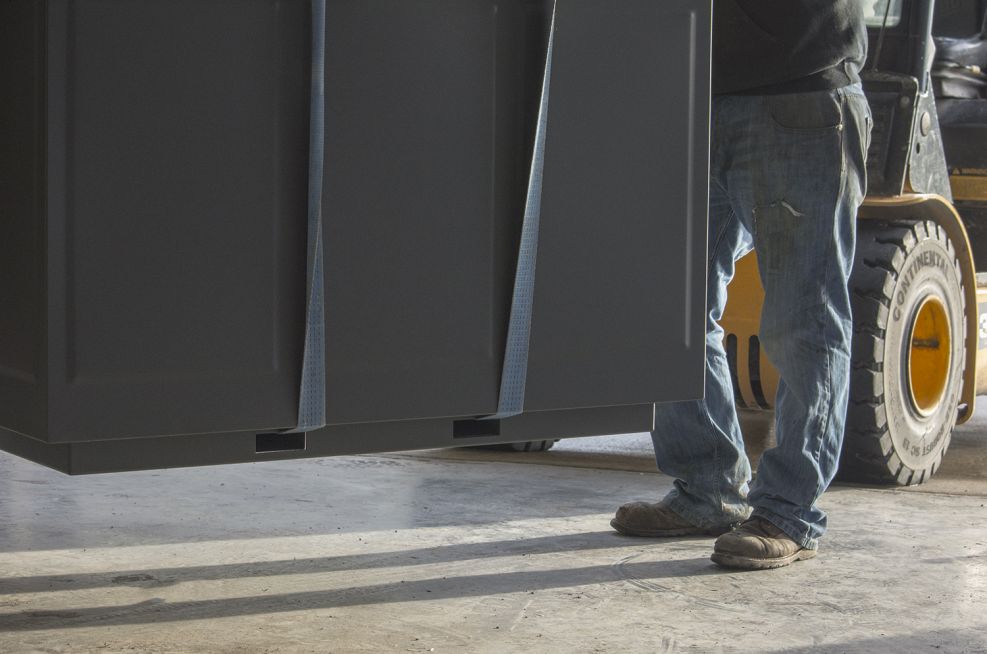

IOTA Steel Planter Plinth With Channel Sections

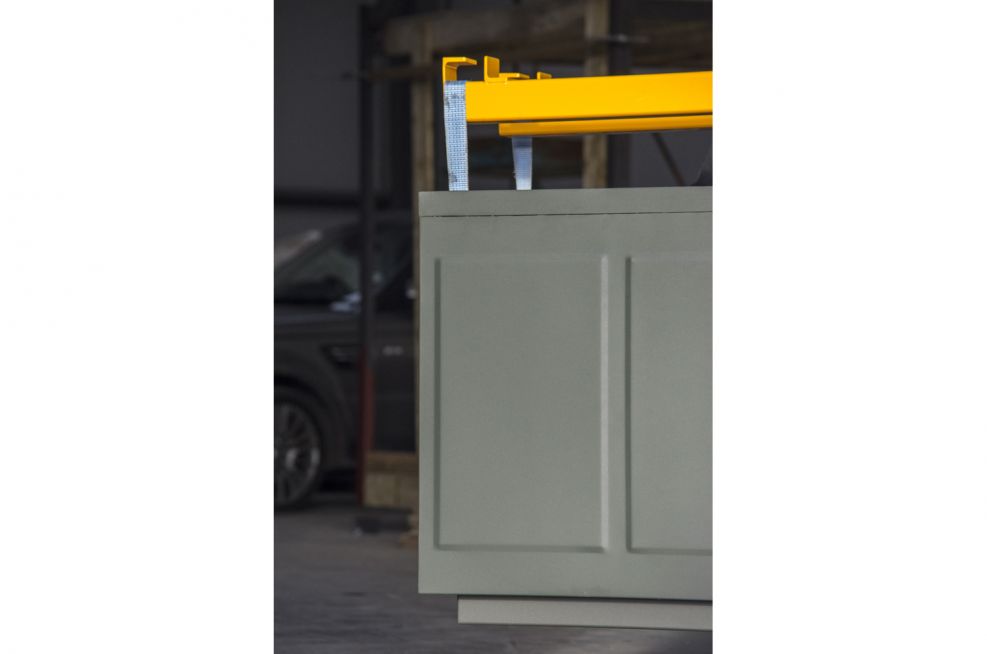

Planter Being Lifted Using Certified Lifting Frame

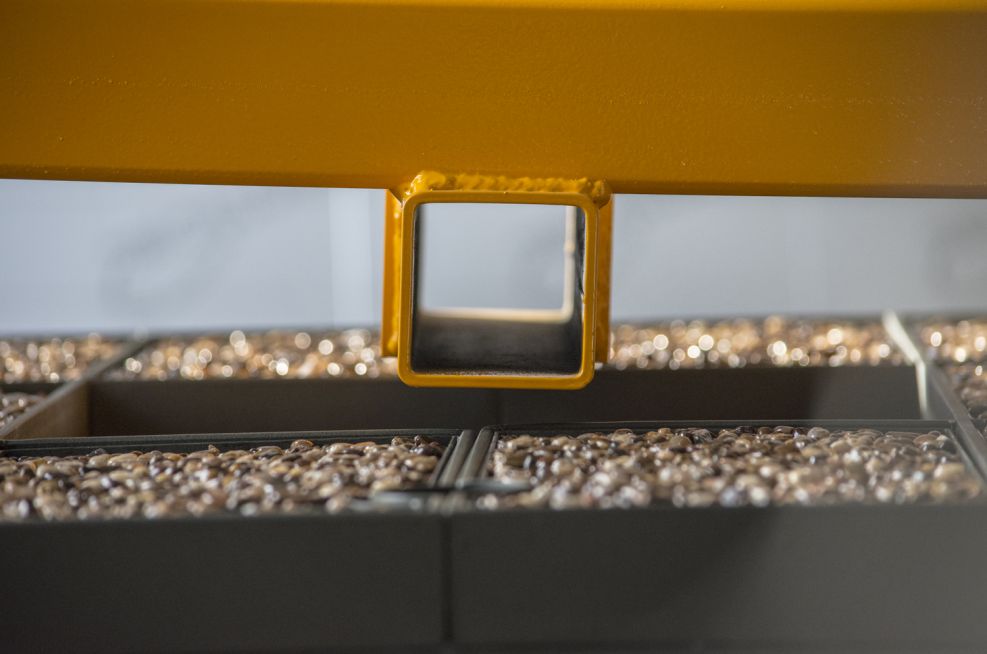

Lifting Frame Being Used To Lift Planter

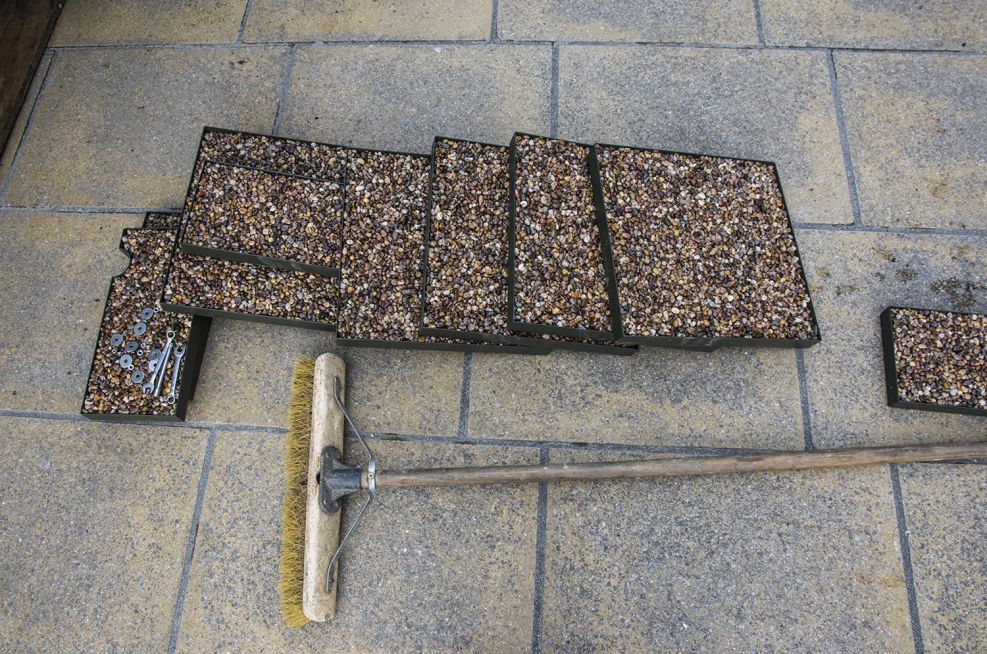

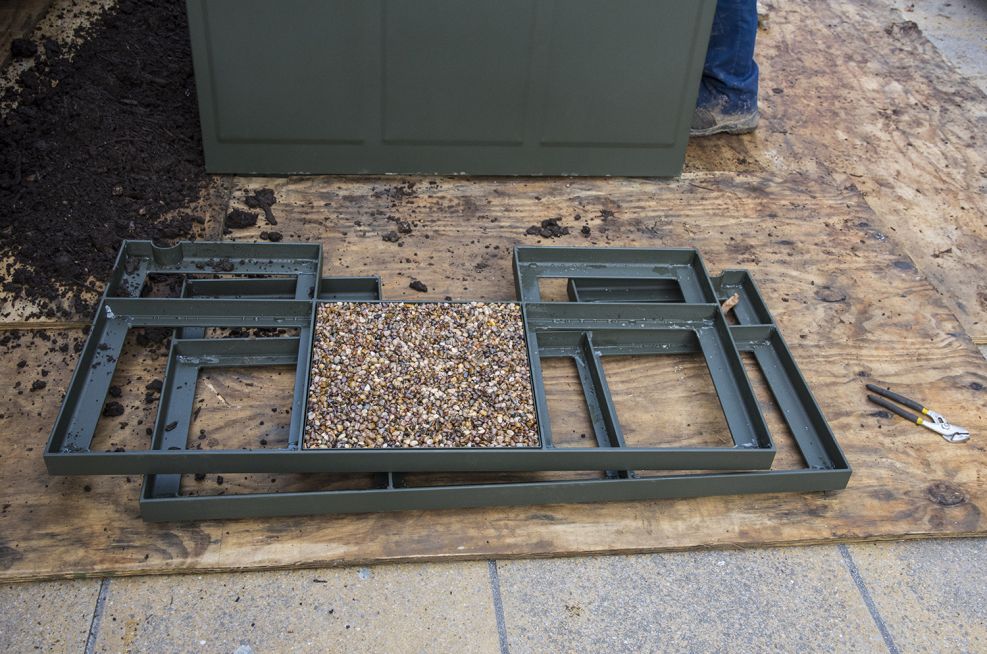

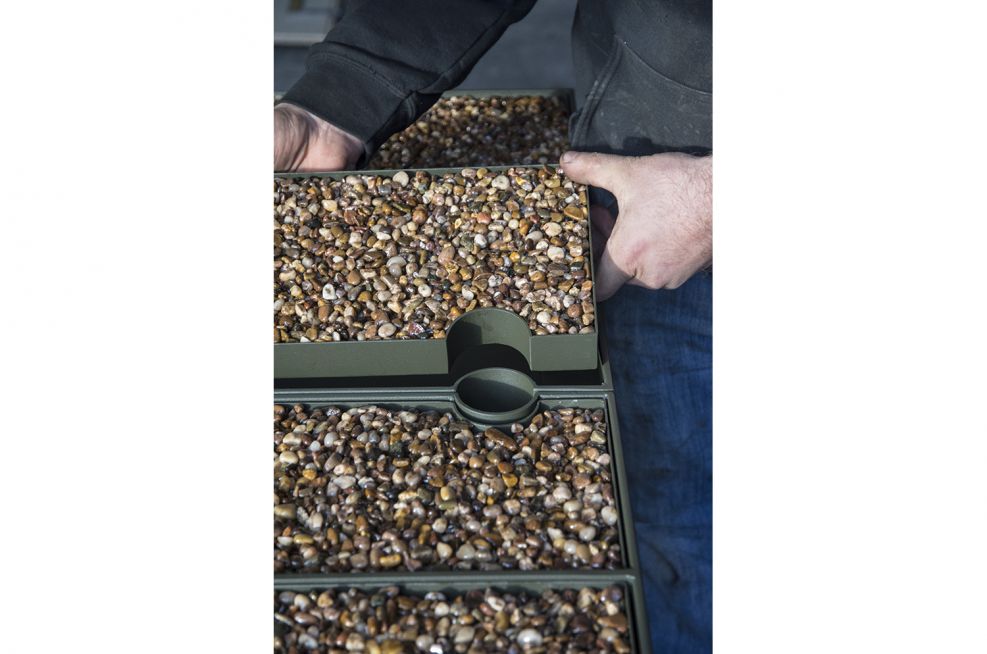

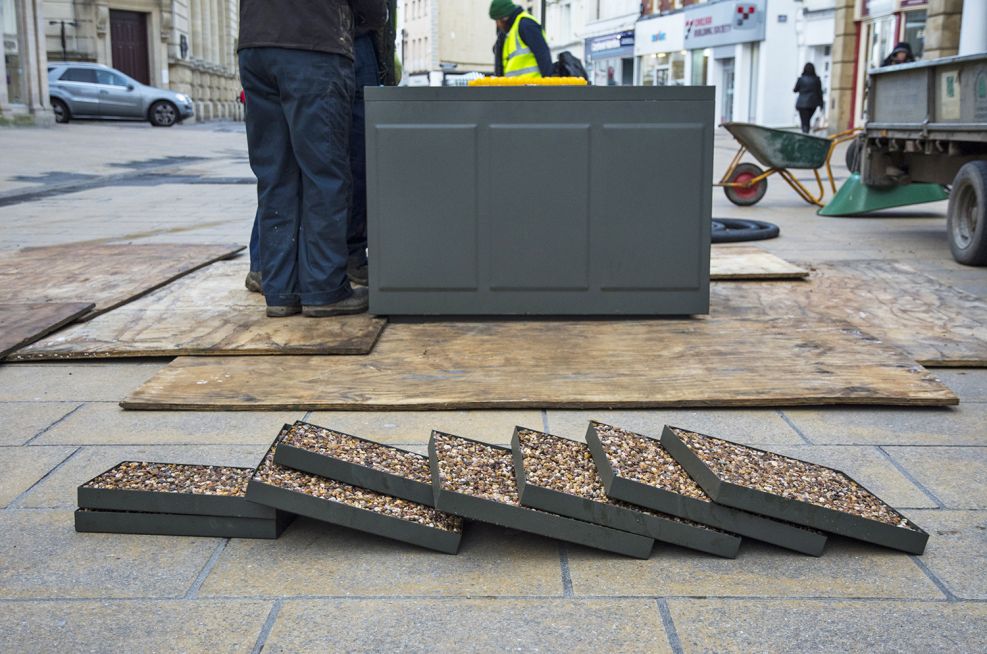

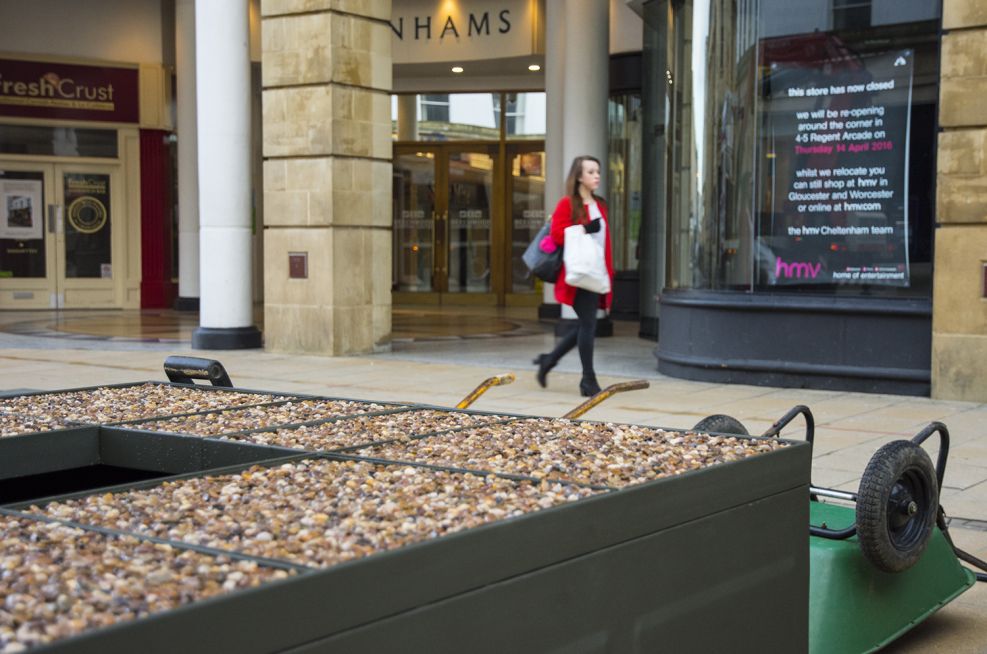

2 Section Lid Which Includes Removable Resin-Bound Gravel Infills

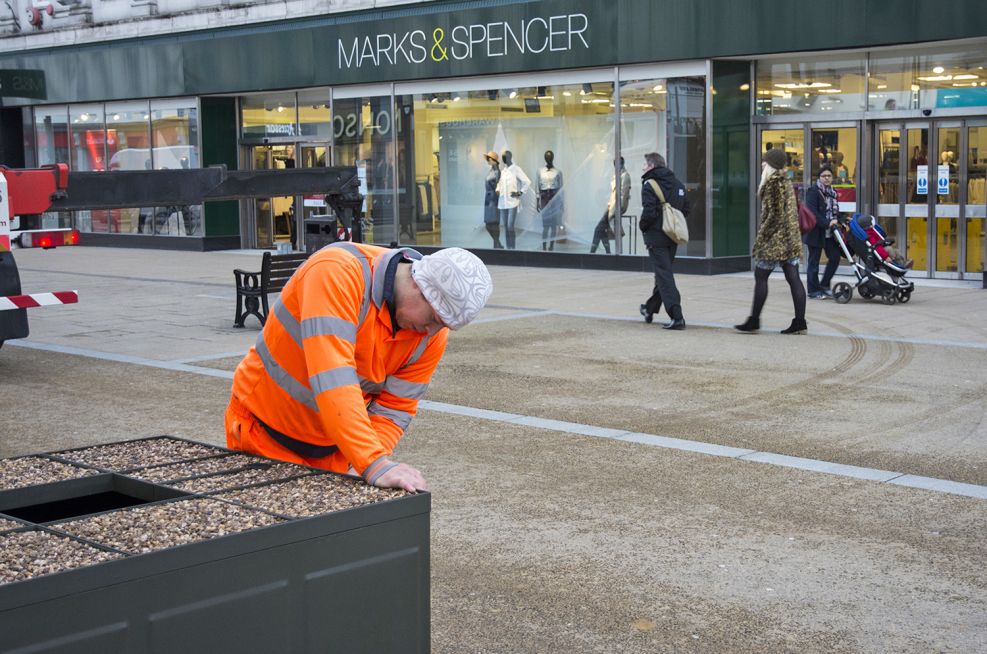

2 Section Lid to be deployed at Cheltenam High Street

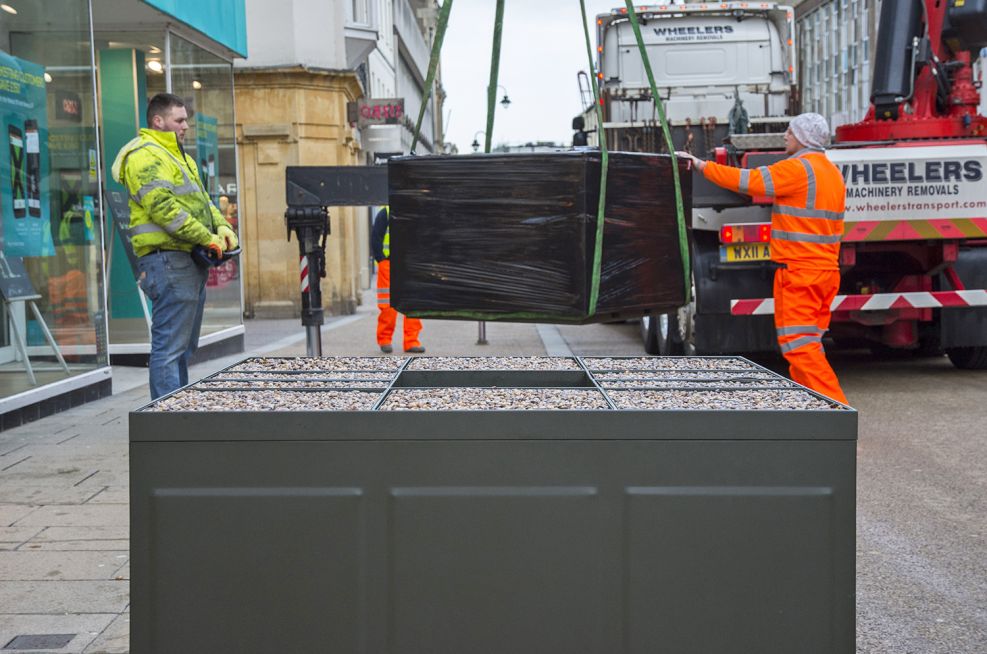

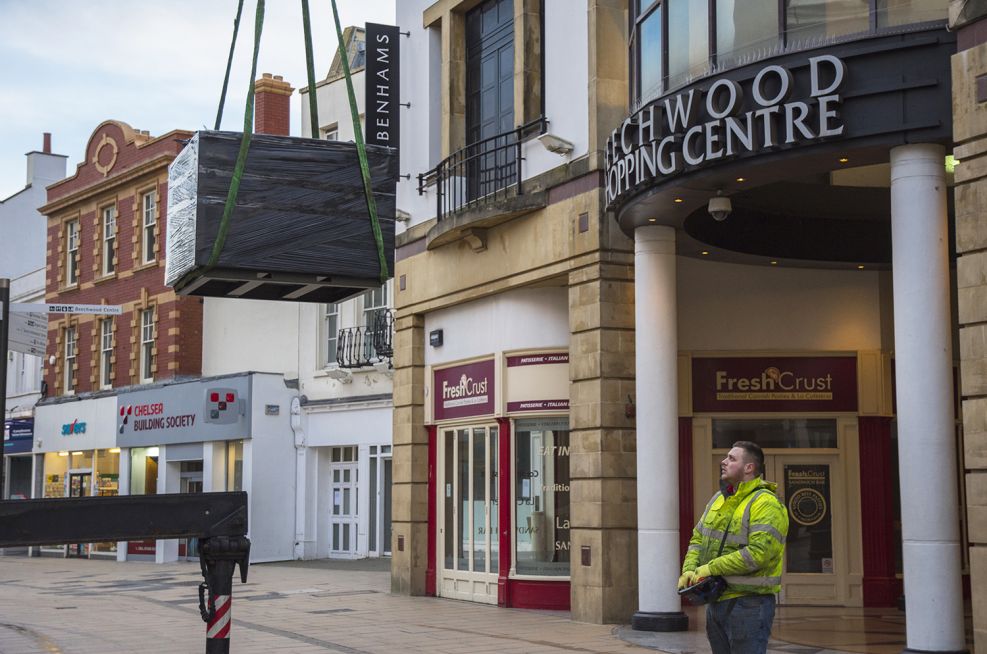

Installation HIAB Lorry Conducted By IOTA

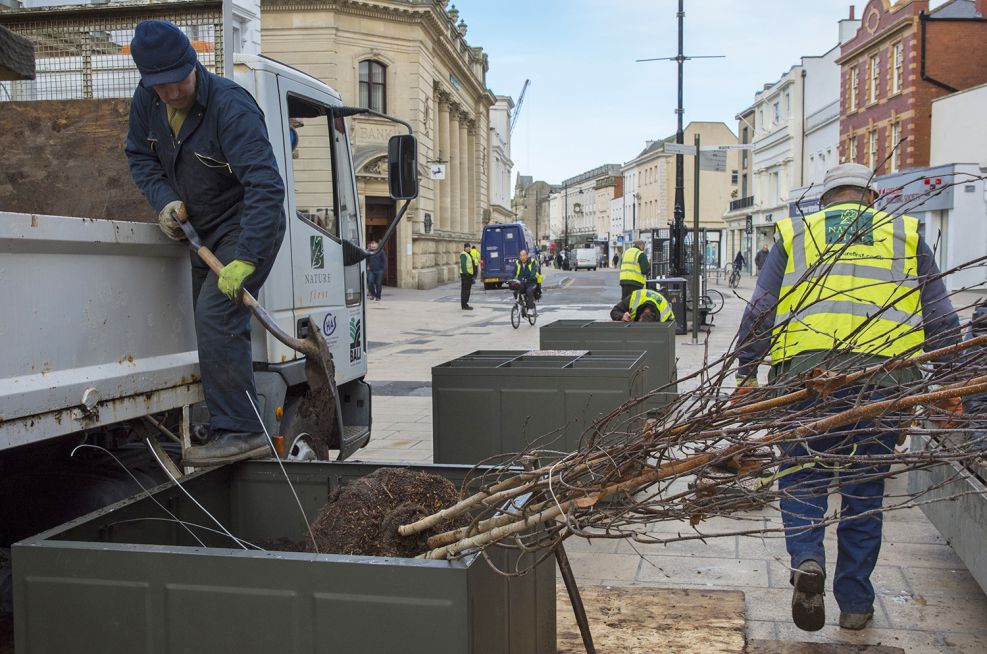

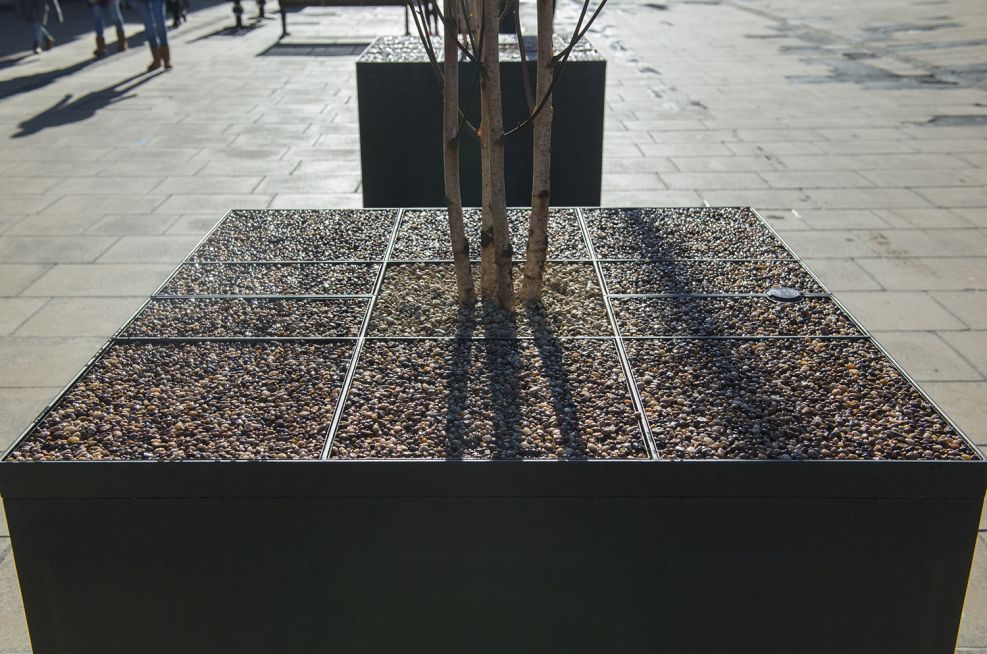

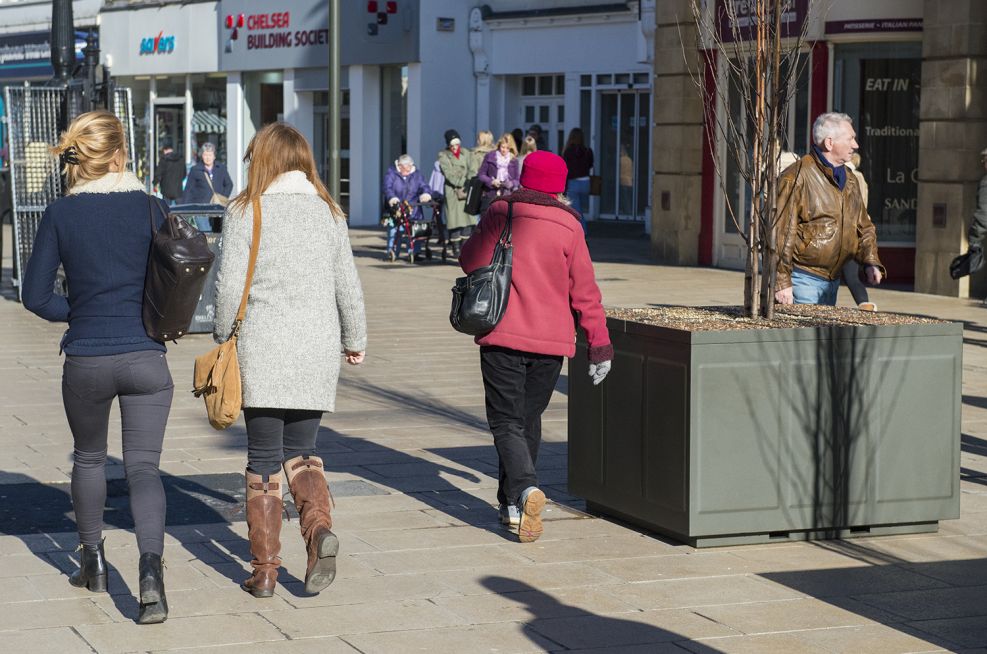

Steel Bespoke Tree Planters In Cheltenham High Street

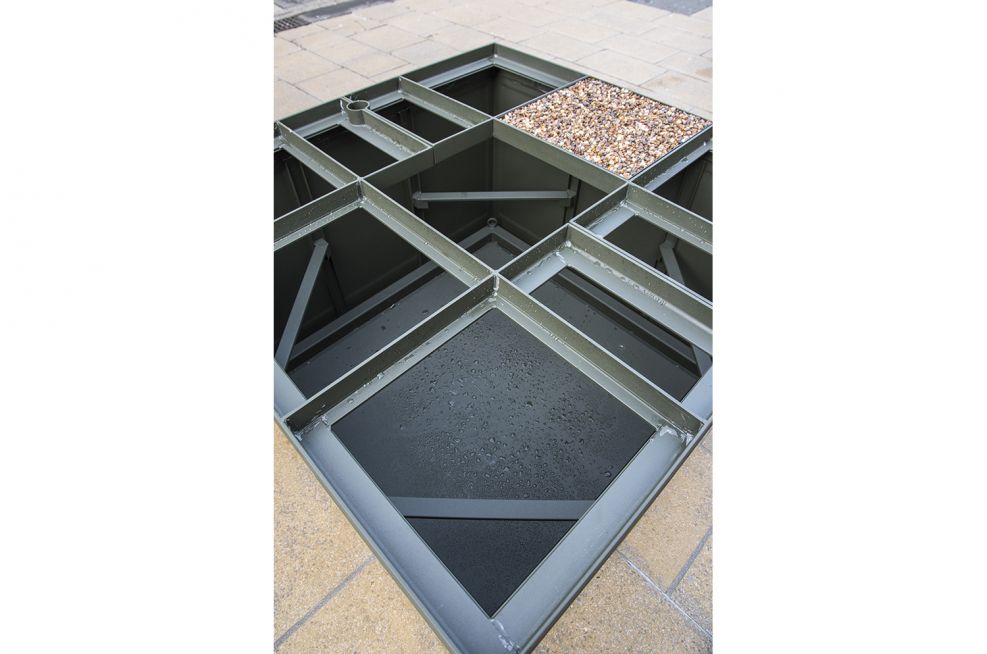

View Of The Inside Of Steel Tree Planter

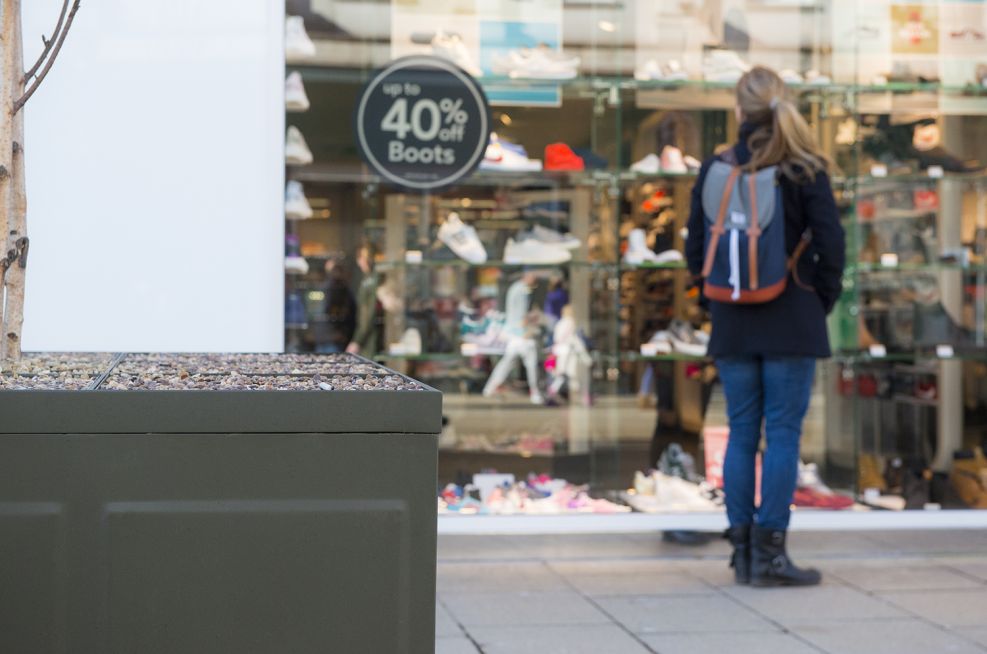

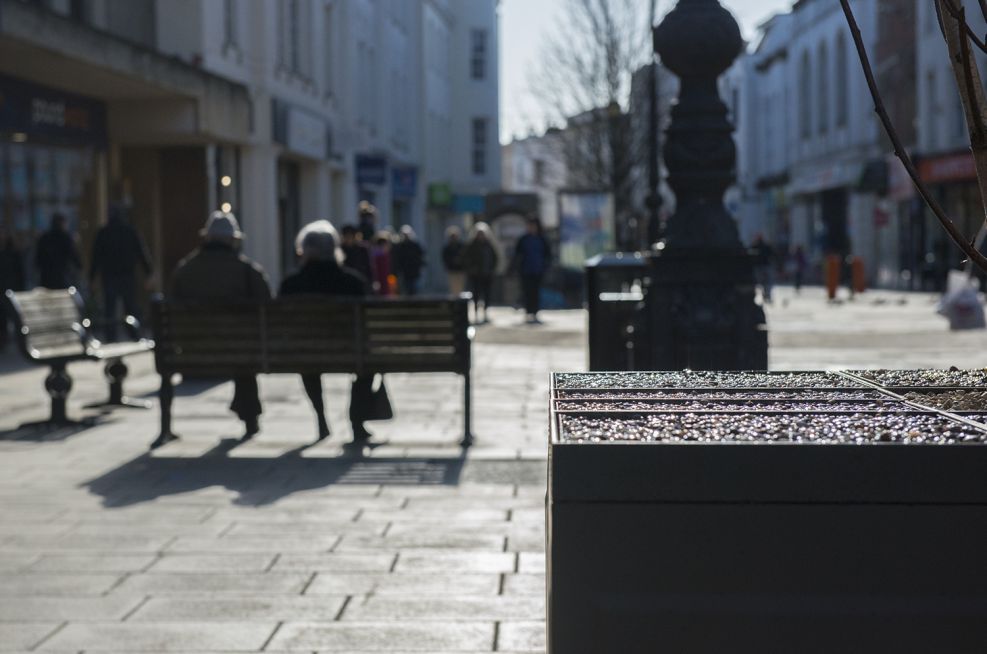

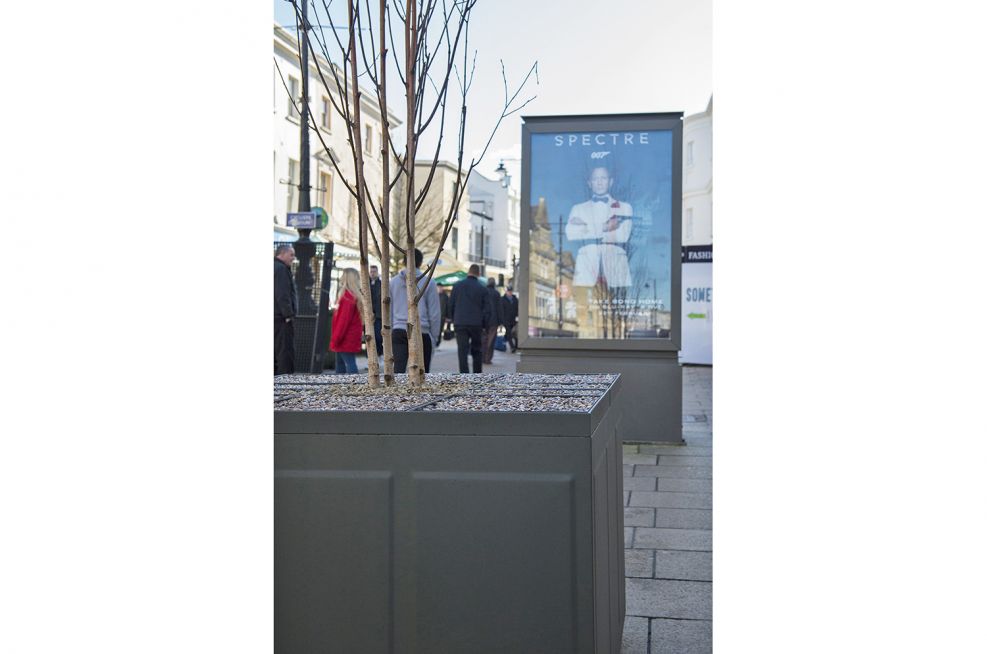

Bespoke Steel Tree Planters In Cheltenham High Street

Steel tree planters were commissioned by Cheltenham Borough Council, in a scheme to green two prime location, pedestrianised areas of Cheltenham High Street. The 5nr. planters were of dims. L 1200 x W 1200 x H 850mm; and they were manufactured from powder coated steel, with resin-bound gravel lids.

The planter design concept was developed by the Public Realm Design Team at Cheltenham Borough Council, with constructional detailing by IOTA. Bespoke design elements included:

pressed panels on all 4 sides, raised 3mm from background surface

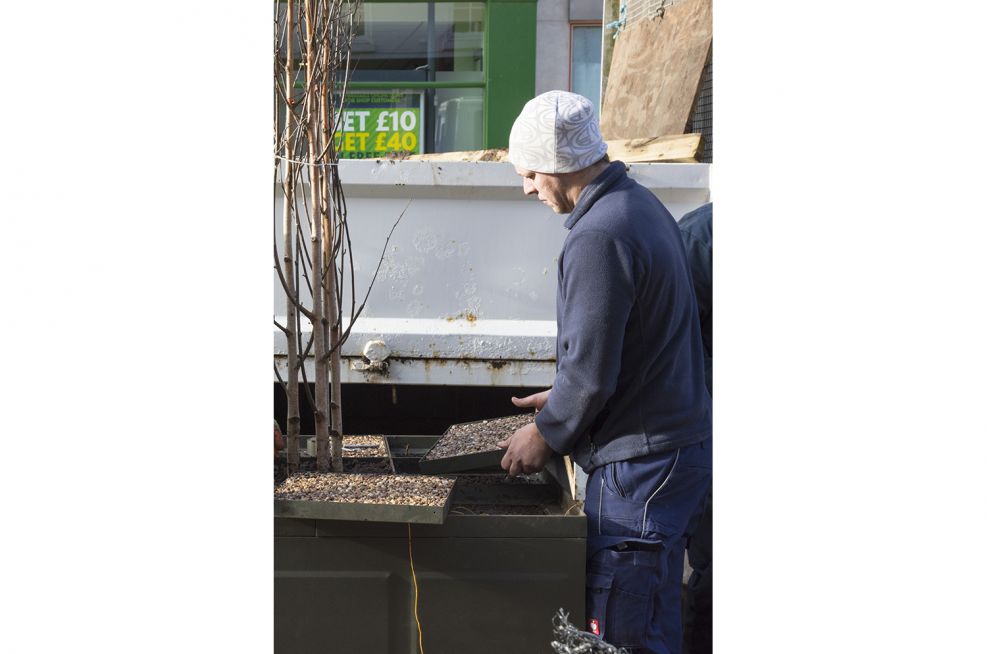

separate lid in 2 sections, including removable resin-bound gravel infills
lifting eyes in base of planter for tree anchor attachment
internal 50mm box section frame to enable planter to be safely lifted, fully-planted
plinth with 90 x 30mm channel sections, to accommodate lifting straps
certified lifting frame

The planters were manufactured from Zintec Steel, with an internal frame of Mild Steel box sections, and powder coated to RAL 6006 [Grey olive]. The paint was specially originated for the project, with a finely-textured surface finish. The installation via HIAB lorry was conducted by IOTA.
